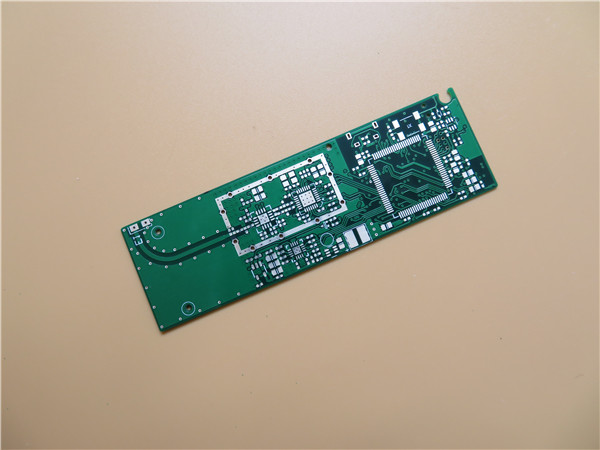

4 Layer 0.4mm FR4 PCB Board with Immersion Silver For Security Systems

Brand Name : Bicheng

Model Number : BIC-469.V1.0

Certification : UL, ISO9001, IATF16949

Place of Origin : CHINA

MOQ : 1PCS

Price : USD9.99-99.99

Payment Terms : T/T

Supply Ability : 5000PCS per month

Delivery Time : 8-9 working days

Packaging Details : Vacuum bags+Cartons

Base material : FR-4

Layer count : 4 Layers

PCB thickness : 0.5mm ±0.1

PCB size : 111 x 45mm=1PCS

Solder mask : Green

Silkscreen : White

Copper weight : 1oz

Surface finish : Immersion Silver

Contact Now


Immersion Silver PCB on 0.4mm FR-4 ITEQ 4 Layer Circuit Board for Security Systems

1.1 General description
This is a type of 4 layer printed circuit board built on FR-4 substrate with mid-Tg 150°C for the application of Security Systems. It's only 0.4 mm thick with white silkscreen(Taiyo) on green solder mask (Nanya) and immersion silver on pads. The base material is from Taiwan ITEQ supplying 1 up PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 30 boards are packed for shipment.

1.2 Features and benifits
Very Low Moisure Absorption and better CAF resistance
Good solderability
16000 square meter workshop
Meeting your PCB needs from prototype to mass production.
UL recognized and RoHS Directive-compliant
Customer complaint rate: <1%

4 Layer 0.4mm FR4 PCB Board with Immersion Silver For Security Systems

1.3 Applications
Medium Access Control
Speaker System
Broadband Modem
Vfd Drive
Module GSM
Gate Access Control

1.4 Parameter and data sheet
PCB SIZE 111 x 45mm=1PCS
BOARD TYPE Multilayer PCB
Number of Layers 4 Layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 18um(0.5oz)+plate TOP layer
PP 2116 x 1
copper ------- 18um(0.5oz)
FR-4 0.1mm
copper ------- 18um(0.5oz)
PP 2116 x 1
copper ------- 18um(0.5oz)+plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 6.99mil/8.47mil
Minimum / Maximum Holes: 0.399mm/3.556mm
Number of Different Holes: 7
Number of Drill Holes: 1521
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Glass Epoxy: FR-4, ITEQ IT-158, Tg>150 °C
Final foil external: 1oz
Final foil internal: 0.5oz
Final height of PCB: 0.5mm ±0.1
PLATING AND COATING
Surface Finish Immersion Silver, Ag>0.15µm
Solder Mask Apply To: Top and Bottom, 12micon Minimum.
Solder Mask Color: Green, LP-4G G-05, Nanya supplied
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend White, S-380W, Taiyo Supplied.
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated Through Hole(PTH), via tented.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

4 Layer 0.4mm FR4 PCB Board with Immersion Silver For Security Systems

1.5 ITEQ Laminate/ Prepreg : IT-140TC / IT-140BS
Property Thickness<0.50 mm Thickness≧0.50 mm Units Test Method
[0.0197 in] [0.0197 in]
Typical Value Spec Typical Value Spec Metric IPC-TM-650
(English) (or as noted)
Peel Strength, minimum         N/mm 2.4.8
A. Low profile copper foil and very low profile copper foil - all copper weights > 17mm [0.669 mil]         (lb/inch) 2.4.8.2
B. Standard profile copper foil 0.96 (5.5) 0.70 (4.0) 0.96 (5.5) 0.70 (4.0)   2.4.8.3
1. After Thermal Stress
2. At 125°C [257 F]
3. After Process Solutions 1.75 (10 ) 0.80 (4.57) 1.93 (11.0) 1.05 (6.00)
  1.66 (9.5) 0.70 (4.00) 1.66 (9.5) 0.70 (4.00)
  1.49 (8.5) 0.55 (3.14) 1.49 (8.5) 0.80 (4.57)
Volume Resistivity, minimum         MW-cm 2.5.17.1
A. C-96/35/90 5x1010 106 -- --
B. After moisture resistance -- -- 5x1010 104
C. At elevated temperature E-24/125 5x1010 103 5x1010 103
Surface Resistivity, minimum         MW 2.5.17.1
A. C-96/35/90 3.5x1010 104 -- --
B. After moisture resistance -- -- 3.5x1010 104
C. At elevated temperature E-24/125 6x1010 103 6x1010 103
Moisture Absorption, maximum 0.3 -- 0.1 0.8 % 2.6.2.1
Dielectric Breakdown, minimum -- -- 60 40 kV 2.5.6
Permittivity (Dk, 50% resin content) 4.6 5.4 4.6 5.4 -- 2.5.5.9
(Laminate & Laminated Prepreg)
A. 1MHz
Loss Tangent (Df, 50% resin content) 0.016 0.035 0.016 0.035 -- 2.5.5.9
(Laminate & Laminated Prepreg)
A. 1MHz
Flexural Strength, minimum         N/mm2 2.4.4
A. Length direction -- -- 500-530 415 (lb/in2)
  -- -- (72,500-76,850) -60,190
B. Cross direction -- -- 430-460 345
  -- -- (62,350-66,700) -50,140
Arc Resistance, minimum 120 60 120 60 s 2.5.1
Thermal Stress 10 s at 288°C [550.4F],minimum         Rating 2.4.13.1
A. Unetched Pass Pass Visual Pass Pass Visual
B. Etched Pass Pass Visual Pass Pass Visual
Electric Strength, minimum 45 30 -- -- kV/mm 2.5.6.2
(Laminate & Laminated Prepreg)
Flammability, V-0 V-0 V-0 V-0 Rating UL94
(Laminate & Laminated Prepreg)
Glass Transition Temperature(DSC) 140 135 minimum 140 135 minimum ˚C 2.4.25
Decomposition Temperature -- -- 305 -- ˚C 2.4.24.6
(5% wt loss)
Z-Axis CTE           2.4.24
A. Alpha 1 -- -- 55 -- ppm/˚C
B. Alpha 2 -- -- 290 -- ppm/˚C
C. 50 to 260 Degrees C -- -- 4.2 -- %
Thermal Resistance           2.4.24.1
A. T260 -- -- 15 -- Minutes
B. T288 -- -- 2 -- Minutes
CAF Resistance -- -- Pass AABUS Pass/Fail 2.6.25
